Please send RFQ , we will respond immediately.

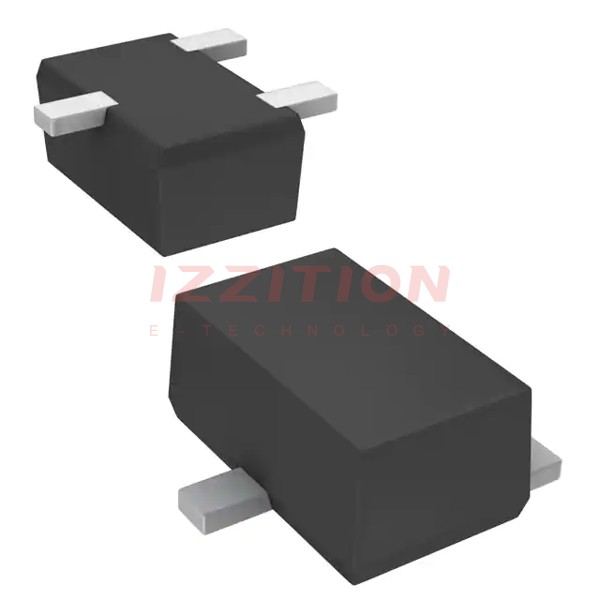

| Part Number | 2SC4808G0L | 2SC4808J0L |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 10V | 10V |
| Frequency - Transition | 6GHz | 6GHz |
| Noise Figure (dB Typ @ f) | 1.3dB ~ 2dB @ 800MHz | 1.3dB ~ 2dB @ 800MHz |
| Gain | 11dB ~ 14dB | 11dB ~ 14dB |
| Power - Max | 125mW | 125mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 20mA, 8V | 50 @ 20mA, 8V |
| Current - Collector (Ic) (Max) | 80mA | 80mA |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SC-89, SOT-490 | SC-89, SOT-490 |
| Supplier Device Package | SSMini3-F3 | SSMini3-F1 |
