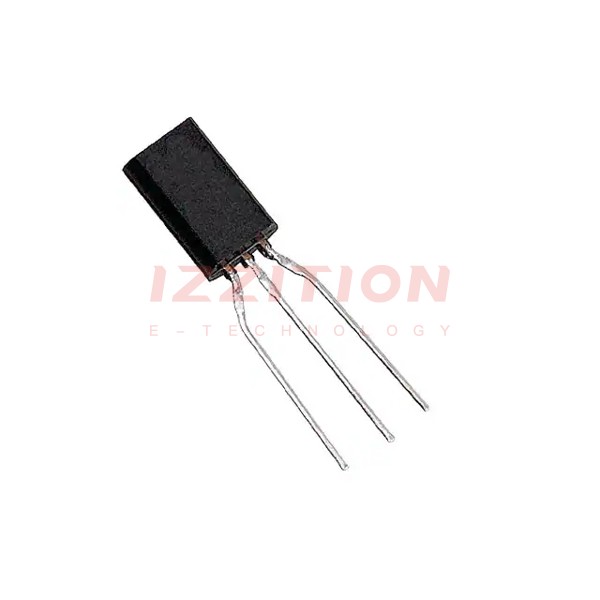

| Part Number | 2SC39410RA | 2SC39400RA | 2SC39410QA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 70 mA | 1 A | 70 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 25 V | 300 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 5mA, 50mA | 400mV @ 50mA, 500mA | 1.2V @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 2µA (ICBO) | 100nA (ICBO) | 2µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 5mA, 10V | 120 @ 500mA, 10V | 60 @ 5mA, 10V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | 80MHz | 200MHz | 80MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92NL-A1 | TO-92NL-A1 | TO-92NL-A1 |
