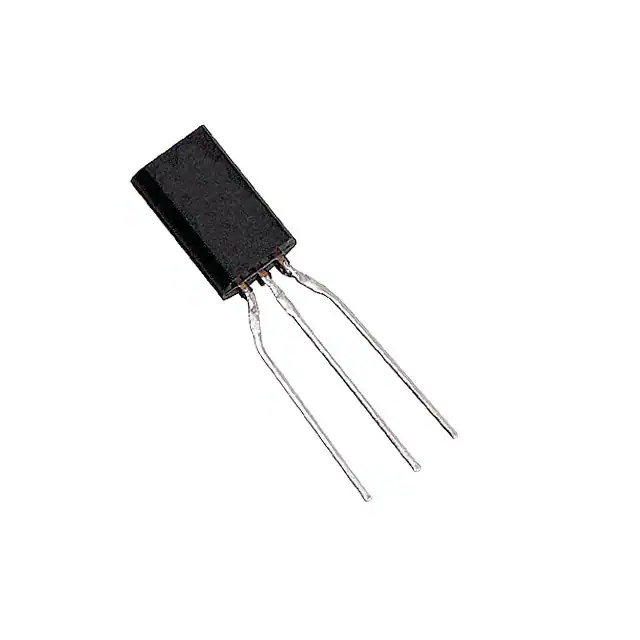

| Part Number | 2SC3940AQA | 2SC3940ASA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 500mA | 400mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 85 @ 500mA, 10V | 170 @ 500mA, 10V |
| Power - Max | 1 W | 1 W |
| Frequency - Transition | 200MHz | 200MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92NL-A1 | TO-92NL-A1 |
