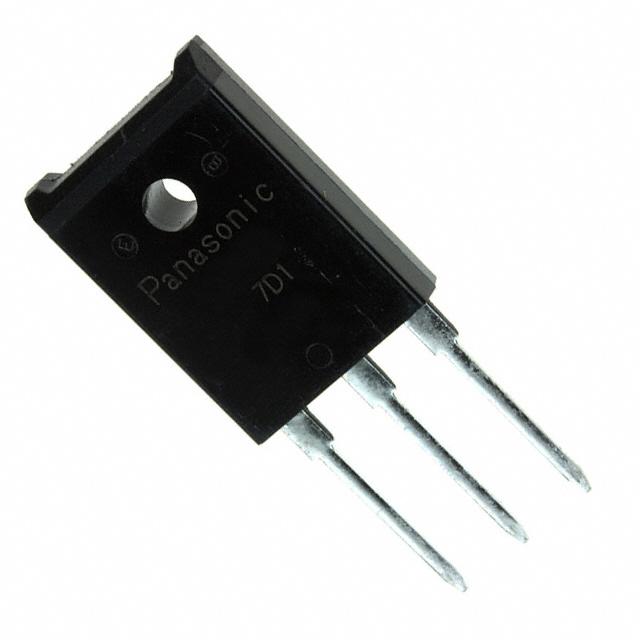

| Part Number | 2SC3506 | 2SC3576 | 2SC3507 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | onsemi | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | NPN | - | NPN |
| Current - Collector (Ic) (Max) | 3 A | - | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 800 V | - | 800 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 400mA, 2A | - | 1.5V @ 600mA, 3A |
| Current - Collector Cutoff (Max) | 50µA (ICBO) | - | 50µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6 @ 2A, 5V | - | 6 @ 3A, 5V |
| Power - Max | 3 W | - | 3 W |
| Frequency - Transition | 4MHz | - | 6MHz |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Through Hole | - | Through Hole |
| Package / Case | TOP-3F | - | TOP-3F |
| Supplier Device Package | TOP-3F-A1 | - | TOP-3F-A1 |
