Panasonic Electronic Components-2SC24970R - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SC24970R	2SC24970Q
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete
Transistor Type	NPN	NPN
Current - Collector (Ic) (Max)	1.5 A	1.5 A
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	1V @ 150mA, 1.5A	1V @ 150mA, 1.5A
Current - Collector Cutoff (Max)	100µA	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 1A, 5V	80 @ 1A, 5V
Power - Max	1.2 W	1.2 W
Frequency - Transition	150MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1

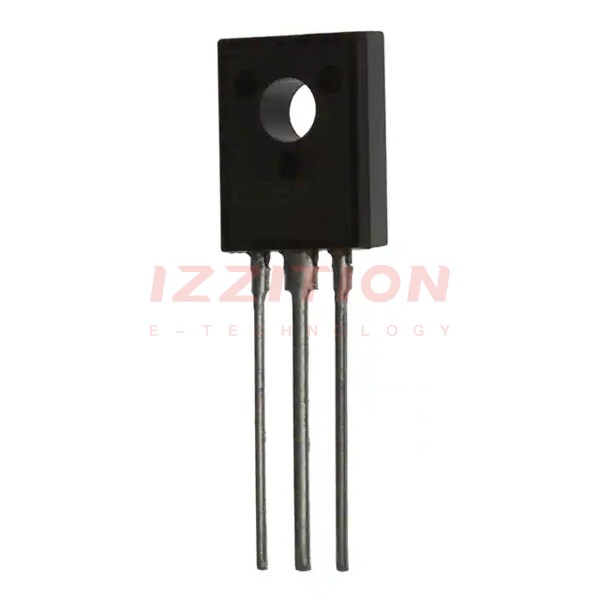

Panasonic Electronic Components 2SC24970R

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 150mA, 1.5A
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 1A, 5V
Power - Max:	1.2 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1
