Panasonic Electronic Components-2SC24970Q - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SC24970Q	2SC2497AQ	2SC24970R
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete	Obsolete
Transistor Type	NPN	NPN	NPN
Current - Collector (Ic) (Max)	1.5 A	1.5 A	1.5 A
Voltage - Collector Emitter Breakdown (Max)	50 V	60 V	50 V
Vce Saturation (Max) @ Ib, Ic	1V @ 150mA, 1.5A	1V @ 150mA, 1.5A	1V @ 150mA, 1.5A
Current - Collector Cutoff (Max)	100µA	100µA	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 5V	80 @ 1A, 5V	120 @ 1A, 5V
Power - Max	1.2 W	1.2 W	1.2 W
Frequency - Transition	150MHz	150MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1	TO-126B-A1

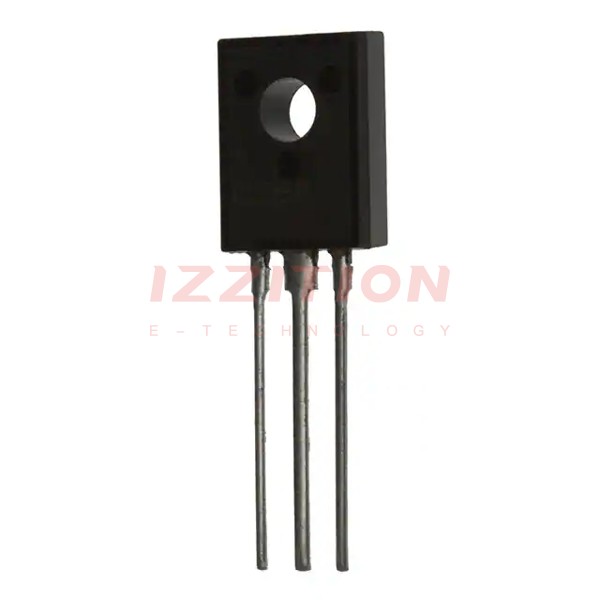

Panasonic Electronic Components 2SC24970Q

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 150mA, 1.5A
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 1A, 5V
Power - Max:	1.2 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1
