Panasonic Electronic Components-2SC15680R - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SC15680R	2SC15180R	2SC15670R
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete	Obsolete
Transistor Type	NPN	NPN	NPN
Current - Collector (Ic) (Max)	1 A	1 A	500 mA
Voltage - Collector Emitter Breakdown (Max)	18 V	20 V	100 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 1A	500mV @ 50mA, 1A	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	10µA	1µA	-
DC Current Gain (hFE) (Min) @ Ic, Vce	130 @ 500mA, 2V	130 @ 500mA, 2V	130 @ 150mA, 10V
Power - Max	1.2 W	1 W	1.2 W
Frequency - Transition	150MHz	150MHz	120MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-226-3, TO-92-3 Long Body	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-92L-A1	TO-126B-A1

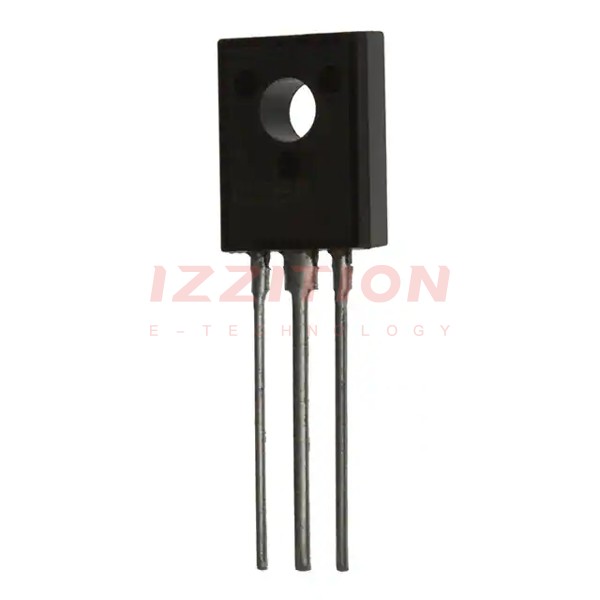

Panasonic Electronic Components 2SC15680R

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	18 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 50mA, 1A
Current - Collector Cutoff (Max):	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	130 @ 500mA, 2V
Power - Max:	1.2 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1
