Panasonic Electronic Components-2SC15670R - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SC15670R	2SC1567AR	2SC15680R	2SC15670S
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	NPN	NPN	NPN	NPN
Current - Collector (Ic) (Max)	500 mA	500 mA	1 A	500 mA
Voltage - Collector Emitter Breakdown (Max)	100 V	120 V	18 V	100 V
Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 500mA	400mV @ 50mA, 500mA	500mV @ 50mA, 1A	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	-	-	10µA	-
DC Current Gain (hFE) (Min) @ Ic, Vce	130 @ 150mA, 10V	130 @ 150mA, 10V	130 @ 500mA, 2V	185 @ 150mA, 10V
Power - Max	1.2 W	1.2 W	1.2 W	1.2 W
Frequency - Transition	120MHz	120MHz	150MHz	120MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1	TO-126B-A1	TO-126B-A1

Transistor Type:	NPN
Current - Collector (Ic) (Max):	500 mA
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	130 @ 150mA, 10V
Power - Max:	1.2 W
Frequency - Transition:	120MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1

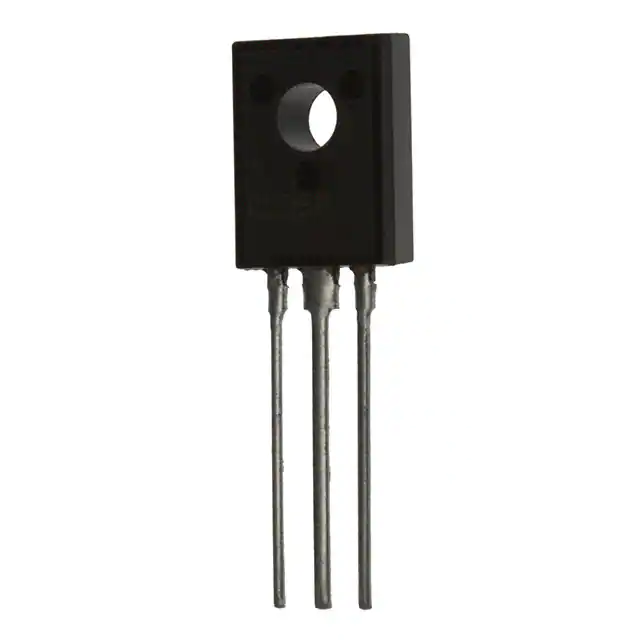

Panasonic Electronic Components 2SC15670R
