Please send RFQ , we will respond immediately.

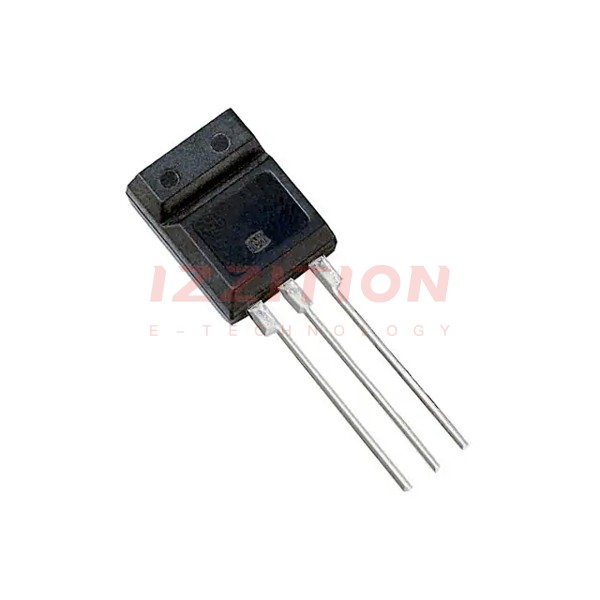

| Part Number | 2SB1418APA | 2SB1418AQA | 2SB1417APA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP - Darlington | PNP - Darlington | PNP |
| Current - Collector (Ic) (Max) | 2 A | 2 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 80 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 8mA, 2A | 2.5V @ 8mA, 2A | 1.2V @ 375mA, 3A |
| Current - Collector Cutoff (Max) | 100µA | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 4000 @ 2A, 4V | 2000 @ 2A, 4V | 120 @ 1A, 4V |
| Power - Max | 2 W | 2 W | 2 W |
| Frequency - Transition | 20MHz | 20MHz | 30MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP | 3-SIP |
| Supplier Device Package | MT-4-A1 | MT-4-A1 | MT-4-A1 |
