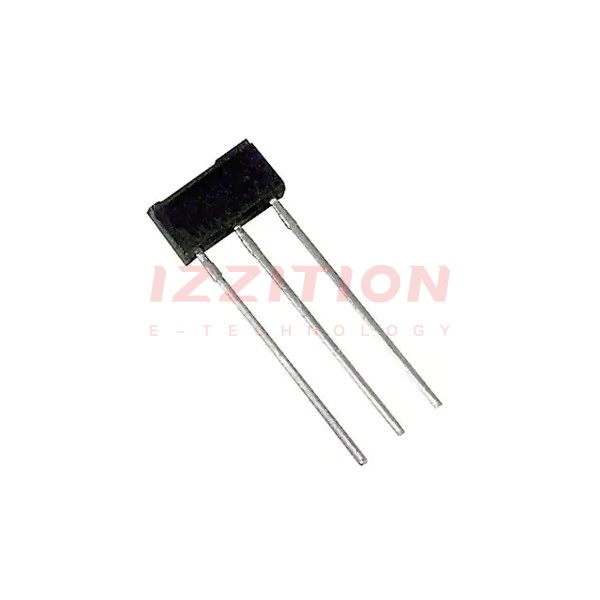

| Part Number | 2SB1320A0A | 2SB1321A0A | 2SB1322A0A |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 100 mA | 500 mA | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 10mA, 100mA | 600mV @ 30mA, 300mA | 400mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 2mA, 10V | 85 @ 10mA, 10V | 85 @ 500mA, 10V |
| Power - Max | 400 mW | 600 mW | 1 W |
| Frequency - Transition | 80MHz | 200MHz | 200MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP | 3-SIP |
| Supplier Device Package | MT-1-A1 | MT-1-A1 | MT-2-A1 |
