2SB11560P
  • Share:

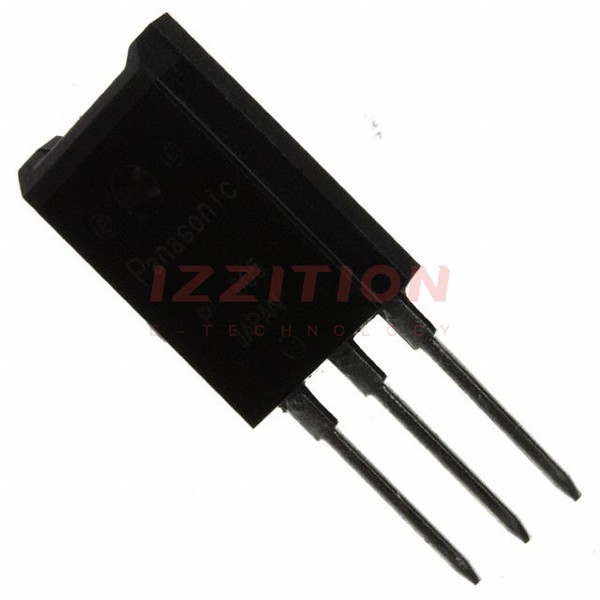

Panasonic Electronic Components 2SB11560P

Manufacturer No:
2SB11560P
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
2SB11560P Datasheet
ECAD Model:
-
Description:
TRANS PNP 80V 20A TOP-3F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):20 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 2A, 20A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:130 @ 3A, 2V
Power - Max:3 W
Frequency - Transition:30MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TOP-3F
Supplier Device Package:TOP-3F-A1
0 Remaining View Similar

In Stock

-
225

Please send RFQ , we will respond immediately.
