2SB11540Q
  • Share:

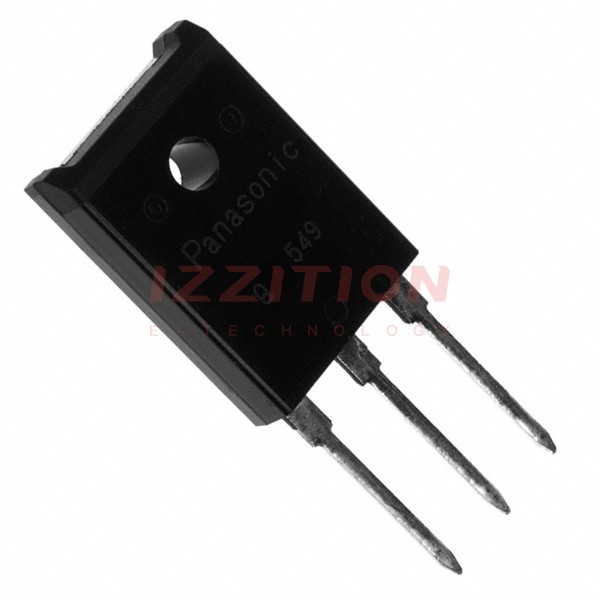

Panasonic Electronic Components 2SB11540Q

Manufacturer No:
2SB11540Q
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
2SB11540Q Datasheet
ECAD Model:
-
Description:
TRANS PNP 80V 10A TOP-3F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 1A, 10A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:90 @ 3A, 2V
Power - Max:3 W
Frequency - Transition:30MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TOP-3F
Supplier Device Package:TOP-3F-A1
0 Remaining View Similar

In Stock

-
25

Please send RFQ , we will respond immediately.
