2SB10540P
  • Share:

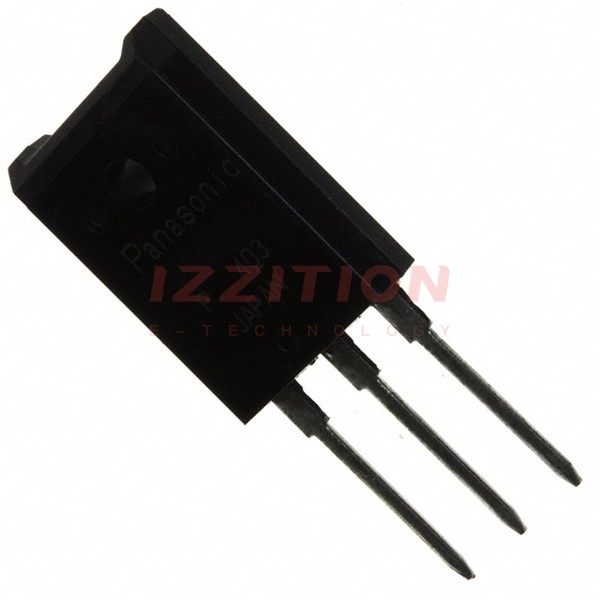

Panasonic Electronic Components 2SB10540P

Manufacturer No:
2SB10540P
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
2SB10540P Datasheet
ECAD Model:
-
Description:
TRANS PNP 100V 5A TOP-3F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):5 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:2V @ 300mA, 3A
Current - Collector Cutoff (Max):50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 1A, 5V
Power - Max:3 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TOP-3F
Supplier Device Package:TOP-3F-A1
0 Remaining View Similar

In Stock

-
295

Please send RFQ , we will respond immediately.
