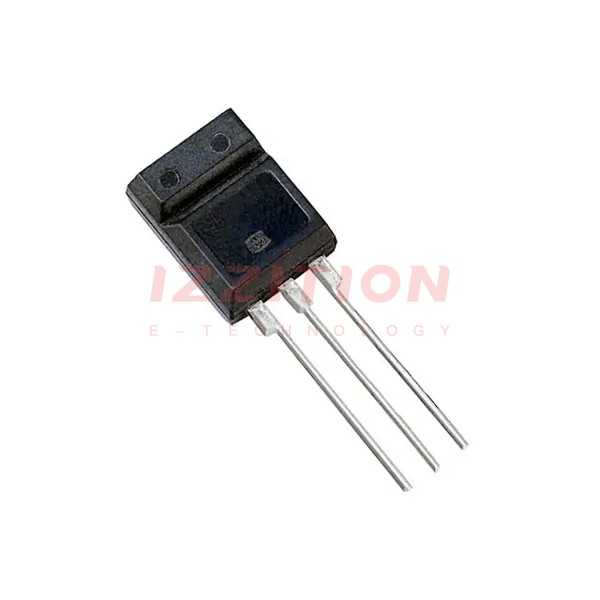

| Part Number | 2SA20670QA | 2SA20670PA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Transistor Type | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 800mV @ 375mA, 3A | 800mV @ 375mA, 3A |
| Current - Collector Cutoff (Max) | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 1A, 4V | 160 @ 1A, 4V |
| Power - Max | 2 W | 2 W |
| Frequency - Transition | 90MHz | 90MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 3-SIP | 3-SIP |
| Supplier Device Package | MT-4-A1 | MT-4-A1 |
