Panasonic Electronic Components-2SA1534ARA - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SA1534ARA	2SA1534ASA
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete
Transistor Type	PNP	PNP
Current - Collector (Ic) (Max)	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 500mA	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 500mA, 10V	170 @ 500mA, 10V
Power - Max	1 W	1 W
Frequency - Transition	200MHz	200MHz
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body
Supplier Device Package	TO-92NL-A1	TO-92NL-A1

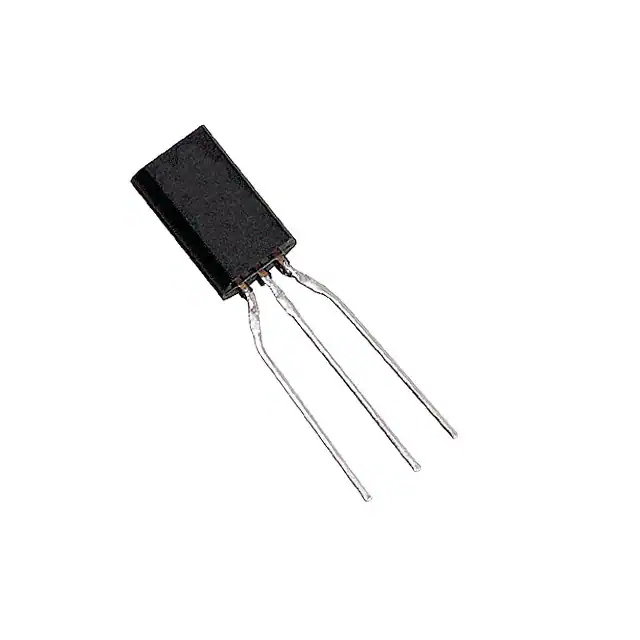

Panasonic Electronic Components 2SA1534ARA

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 500mA, 10V
Power - Max:	1 W
Frequency - Transition:	200MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92NL-A1
