Panasonic Electronic Components-2SA1096AQ - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SA1096AQ	2SA10960Q
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Active	Obsolete
Transistor Type	PNP	PNP
Current - Collector (Ic) (Max)	2 A	2 A
Voltage - Collector Emitter Breakdown (Max)	60 V	50 V
Vce Saturation (Max) @ Ib, Ic	1V @ 150mA, 1.5A	1V @ 150mA, 1.5A
Current - Collector Cutoff (Max)	100µA	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 5V	80 @ 1A, 5V
Power - Max	1.2 W	1.2 W
Frequency - Transition	150MHz	150MHz
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1

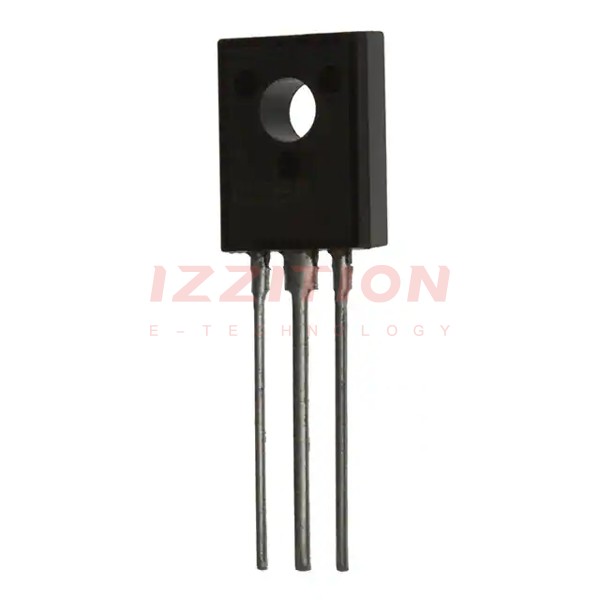

Panasonic Electronic Components 2SA1096AQ

Transistor Type:	PNP
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 150mA, 1.5A
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 1A, 5V
Power - Max:	1.2 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1
