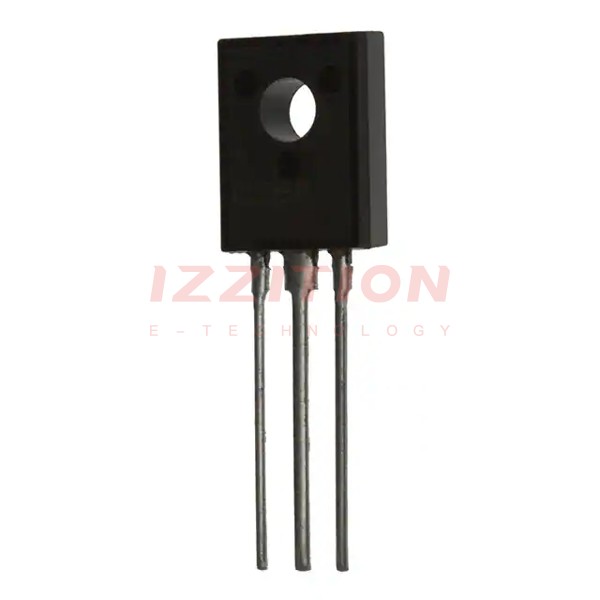

Panasonic Electronic Components-2SA07940R - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SA07940R	2SA0794AR
Manufacturer	Panasonic Electronic Components	Panasonic Electronic Components
Product Status	Obsolete	Obsolete
Transistor Type	PNP	PNP
Current - Collector (Ic) (Max)	500 mA	500 mA
Voltage - Collector Emitter Breakdown (Max)	100 V	120 V
Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 500mA	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	-	-
DC Current Gain (hFE) (Min) @ Ic, Vce	130 @ 150mA, 10V	130 @ 150mA, 10V
Power - Max	1.2 W	1.2 W
Frequency - Transition	120MHz	120MHz
Operating Temperature	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126B-A1	TO-126B-A1

Transistor Type:	PNP
Current - Collector (Ic) (Max):	500 mA
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 50mA, 500mA
Current - Collector Cutoff (Max):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	130 @ 150mA, 10V
Power - Max:	1.2 W
Frequency - Transition:	120MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126B-A1

Panasonic Electronic Components 2SA07940R
