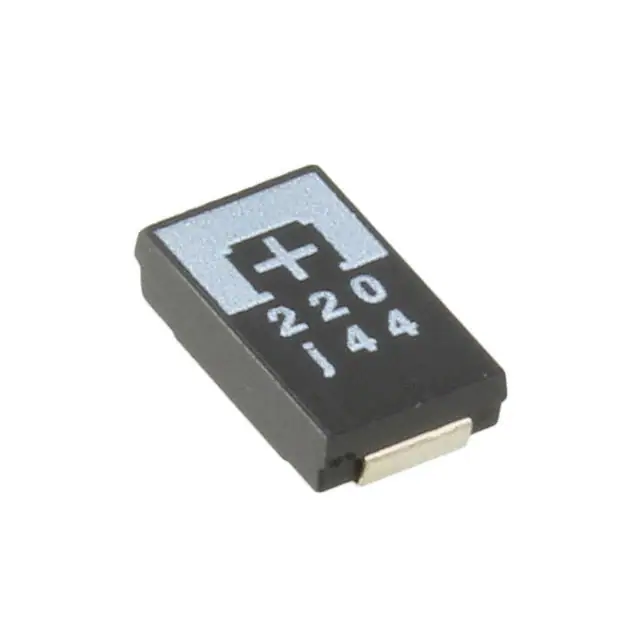

| Part Number | 2R5TAE330MI | 2R5TPE330MI | 2R5THE330MI | 2R5TAE330M | 2R5TAE330MF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V | 2.5 V | 2.5 V | 2.5 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 18mOhm @ 100kHz | 18mOhm @ 100kHz | 18mOhm @ 100kHz | 15mOhm @ 100kHz | 15mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 125°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.075" (1.90mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | D2E | D2E | D2E | D2E | D2E |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
