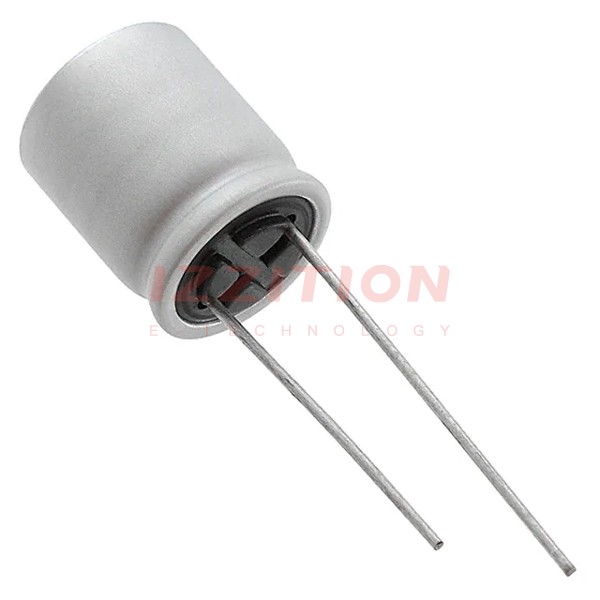

| Part Number | 2R5SEP1500M | 2R5SVP1500M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 1500 µF | 1500 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 12mOhm | 12mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 272 mA @ 120 Hz | 272 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.44 A @ 100 kHz | 5.44 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.197" (5.00mm) | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.500" (12.70mm) |
| Surface Mount Land Size | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | Radial, Can | Radial, Can - SMD |
