Please send RFQ , we will respond immediately.

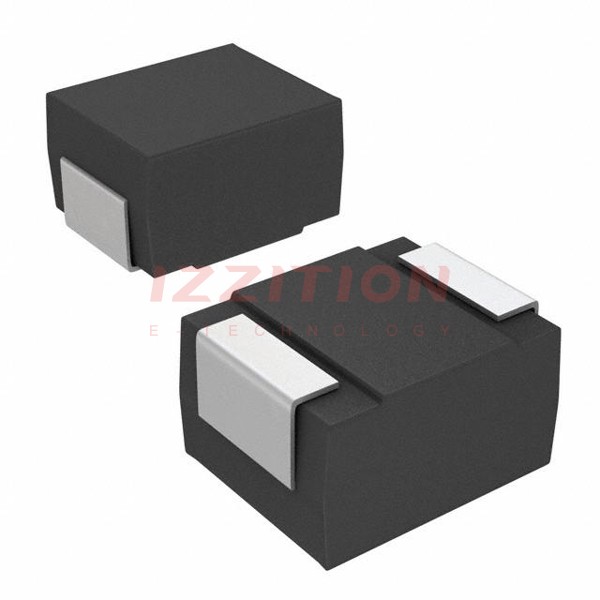

| Part Number | 25TQC15MYFB | 25TQC15MYFD | 25TDC15MYFB |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 100mOhm @ 100kHz | 90mOhm @ 100kHz | 100mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 1000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 2917 (7343 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | B2 | D2 | B2 |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
