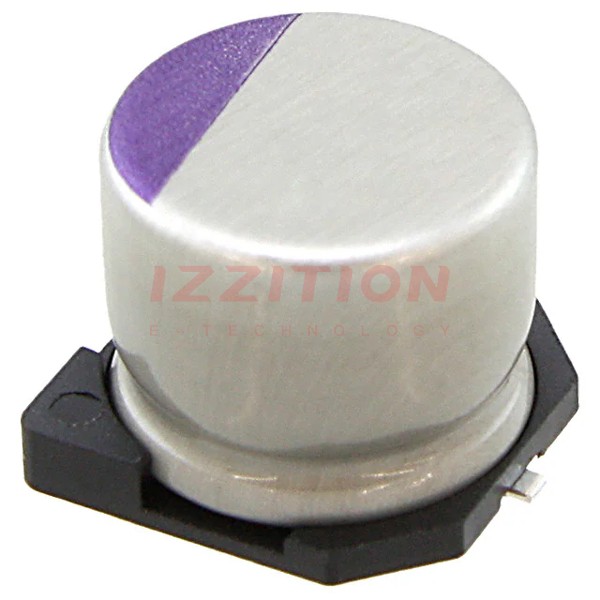

| Part Number | 20SVP33M | 20SVPG33M | 20SEP33M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 20 V | 20 V | 20 V |
| ESR (Equivalent Series Resistance) | 45mOhm | 27mOhm | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 94.5 mA @ 120 Hz | 150 mA @ 120 Hz | 94.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz | 3 A @ 100 kHz | 1.89 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.197" Dia (5.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.177" (4.50mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | - |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can |
