Please send RFQ , we will respond immediately.

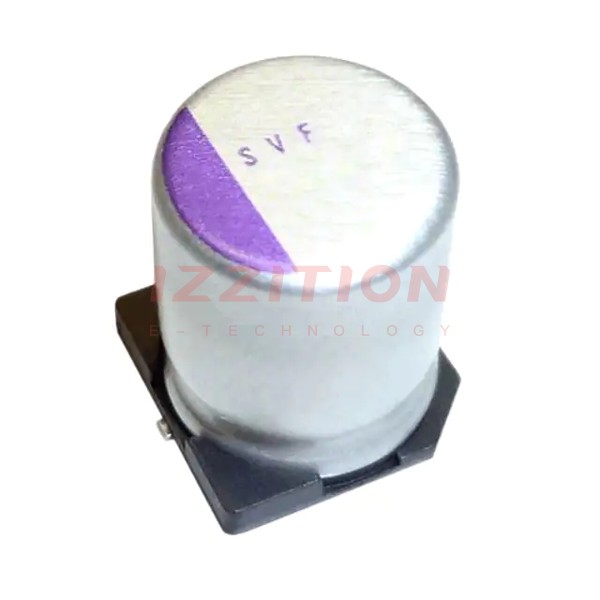

| Part Number | 20SVF560M | 20SVPF560M | 20SVF56M | 20SVT560M | 20SEF560M |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 560 µF | 560 µF | 56 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 20 V | 20 V | 20 V | 20 V | 20 V |
| ESR (Equivalent Series Resistance) | 12mOhm | 12mOhm | 30mOhm | 12mOhm | 12mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 5000 Hrs @ 105°C | 1000 Hrs @ 125°C | 2000 Hrs @ 125°C | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz | 270 mA @ 120 Hz | 44 mA @ 120 Hz | 270 mA @ 120 Hz | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz | 5.4 A @ 100 kHz | 880 mA @ 100 kHz | 5.4 A @ 100 kHz | 1.7 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.236" (6.00mm) | 0.500" (12.70mm) | 0.512" (13.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can |
