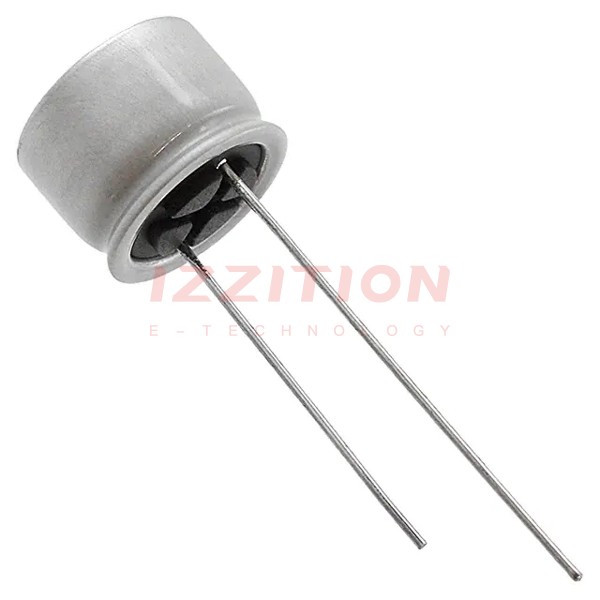

| Part Number | 20SEP68M+T | 20SEQP68M+T |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 68 µF | 68 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 20 V | 20 V |
| ESR (Equivalent Series Resistance) | 40mOhm | 40mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz | 37.95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz | 759 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
