20SEP47M
  • Share:

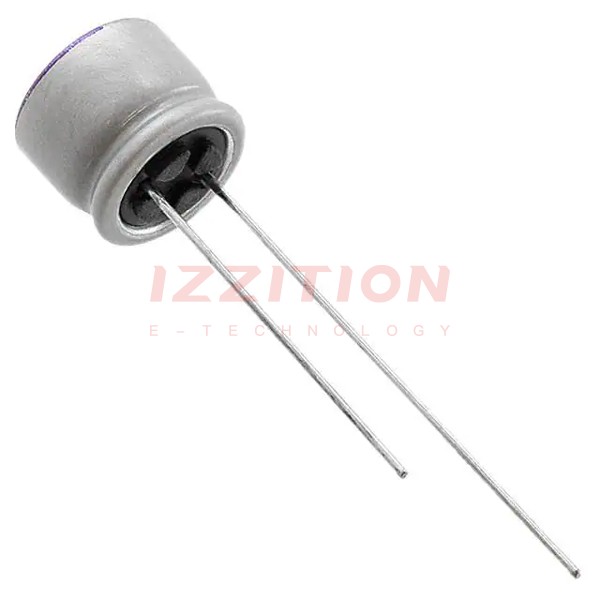

Panasonic Electronic Components 20SEP47M

Manufacturer No:
20SEP47M
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
20SEP47M Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 47UF 20% 20V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:47 µF
Tolerance:±20%
Voltage - Rated:20 V
ESR (Equivalent Series Resistance):45mOhm
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:94.5 mA @ 120 Hz
Ripple Current @ High Frequency:1.89 A @ 100 kHz
Impedance:-
Lead Spacing:0.138" (3.50mm)
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.276" (7.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$1.54
604

Please send RFQ , we will respond immediately.

Similar Products

Part Number 20SEP47M 20SVP47M   20SEQP47M
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Active Active Active
Type Polymer Polymer Polymer
Capacitance 47 µF 47 µF 47 µF
Tolerance ±20% ±20% ±20%
Voltage - Rated 20 V 20 V 20 V
ESR (Equivalent Series Resistance) 45mOhm 45mOhm 45mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C 2000 Hrs @ 105°C 1000 Hrs @ 125°C
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 125°C
Ratings - - -
Applications General Purpose General Purpose General Purpose
Features - - -
Ripple Current @ Low Frequency 94.5 mA @ 120 Hz 94.5 mA @ 120 Hz 29.9 mA @ 120 Hz
Ripple Current @ High Frequency 1.89 A @ 100 kHz 1.89 A @ 100 kHz 598 mA @ 100 kHz
Impedance - - -
Lead Spacing 0.138" (3.50mm) - 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm) 0.315" Dia (8.00mm) 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm) 0.276" (7.00mm) 0.276" (7.00mm)
Surface Mount Land Size - 0.327" L x 0.327" W (8.30mm x 8.30mm) -
Mounting Type Through Hole Surface Mount Through Hole
Package / Case Radial, Can Radial, Can - SMD Radial, Can
