20SEP150M
  • Share:

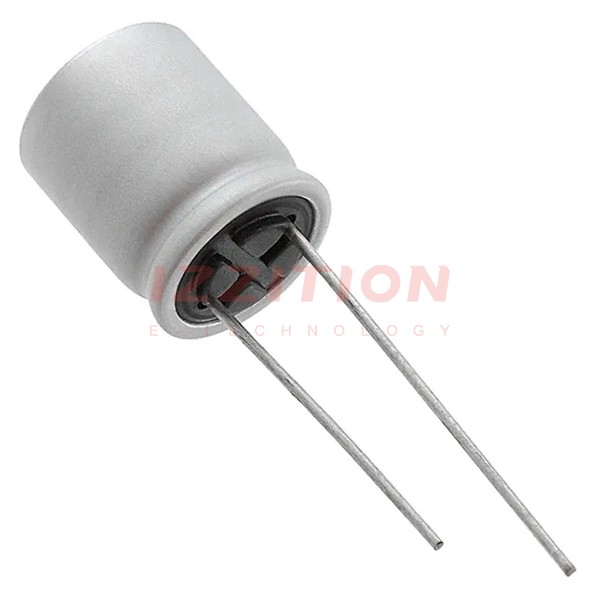

Panasonic Electronic Components 20SEP150M

Manufacturer No:
20SEP150M
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
20SEP150M Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 150UF 20% 20V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:150 µF
Tolerance:±20%
Voltage - Rated:20 V
ESR (Equivalent Series Resistance):20mOhm
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:216 mA @ 120 Hz
Ripple Current @ High Frequency:4.32 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.512" (13.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$2.17
10

Please send RFQ , we will respond immediately.

Similar Products

Part Number 20SEP150M 20SVP150M   20SEQP150M   20SEP100M
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Active Active Active Active
Type Polymer Polymer Polymer Polymer
Capacitance 150 µF 150 µF 150 µF 100 µF
Tolerance ±20% ±20% ±20% ±20%
Voltage - Rated 20 V 20 V 20 V 20 V
ESR (Equivalent Series Resistance) 20mOhm 20mOhm 20mOhm 24mOhm
Lifetime @ Temp. 3000 Hrs @ 105°C 2000 Hrs @ 105°C 1000 Hrs @ 125°C 3000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 105°C
Ratings - - - -
Applications General Purpose General Purpose General Purpose General Purpose
Features - - - -
Ripple Current @ Low Frequency 216 mA @ 120 Hz 216 mA @ 120 Hz 68.35 mA @ 120 Hz 166 mA @ 120 Hz
Ripple Current @ High Frequency 4.32 A @ 100 kHz 4.32 A @ 100 kHz 1.367 A @ 100 kHz 3.32 A @ 100 kHz
Impedance - - - -
Lead Spacing 0.197" (5.00mm) - 0.197" (5.00mm) 0.138" (3.50mm)
Size / Dimension 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm) 0.500" (12.70mm) 0.512" (13.00mm) 0.472" (12.00mm)
Surface Mount Land Size - 0.406" L x 0.406" W (10.30mm x 10.30mm) - -
Mounting Type Through Hole Surface Mount Through Hole Through Hole
Package / Case Radial, Can Radial, Can - SMD Radial, Can Radial, Can
