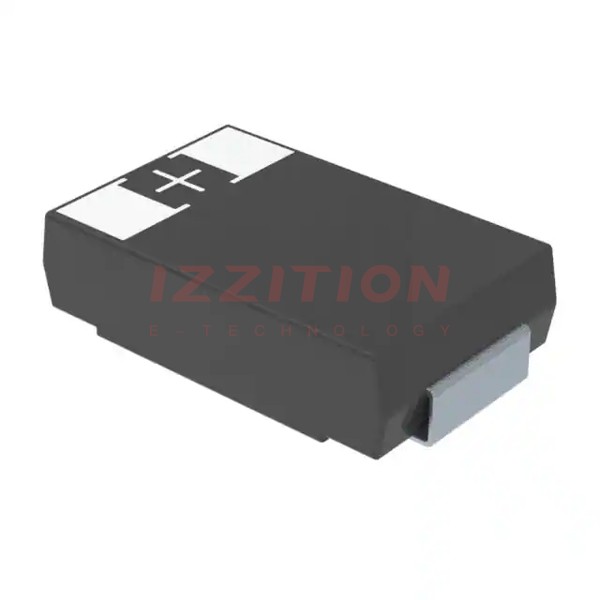

| Part Number | 16TDC100MYF | 16TQC100MYF | 16TDC150MYF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 50mOhm @ 100kHz | 50mOhm @ 100kHz | 50mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 2000 Hrs @ 105°C | 1000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D2 | D2 | D3L |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
