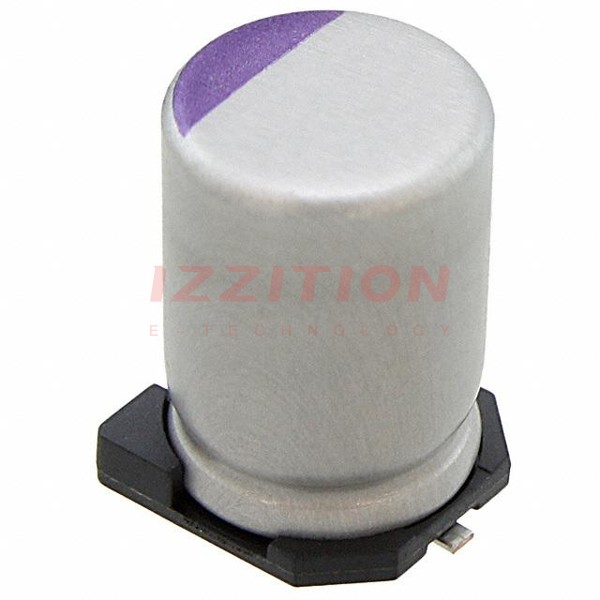

| Part Number | 16SVPF560M | 16SVPG560M | 16SVPT560M | 16SVPF560MX | 16SEPF560M | 16SVF560M |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 14mOhm | 10mOhm | 14mOhm | 18mOhm | 14mOhm | 14mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 20000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 247.5 mA @ 120 Hz | 260 mA @ 120 Hz | 247.5 mA @ 120 Hz | 195 mA @ 120 Hz | 247.5 mA @ 120 Hz | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.95 A @ 100 kHz | 5.2 A @ 100 kHz | 4.95 A @ 100 kHz | 3.9 A @ 100 kHz | 4.95 A @ 100 kHz | 1.56 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | 0.138" (3.50mm) | - |
| Size / Dimension | 0.315" Dia (8.00mm) | - | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | - | 0.472" (12.00mm) | 0.413" (10.50mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can | Radial, Can - SMD |
