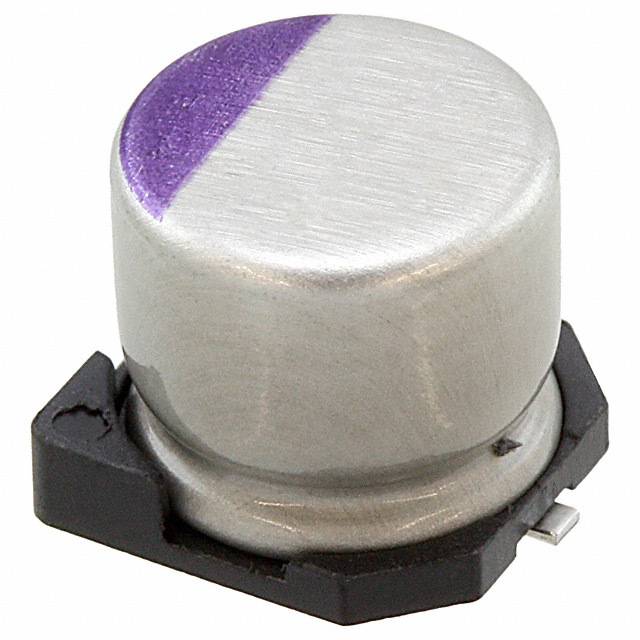

| Part Number | 16SVPC100M | 16SVPG100M | 16SVPC150M | 16SVPT100M | 16SVPK100M | 16SVPC120M | 16SVPS100M | 16SEPC100M | 16SVP100M |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF | 100 µF | 120 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 24mOhm | 15mOhm | 22mOhm | 24mOhm | 27mOhm | 27mOhm | 35mOhm | 24mOhm | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C | 20000 Hrs @ 105°C | 1000 Hrs @ 125°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 124.5 mA @ 120 Hz | 200 mA @ 120 Hz | 161 mA @ 120 Hz | 124.5 mA @ 120 Hz | 47 mA @ 120 Hz | 145 mA @ 120 Hz | 133.5 mA @ 120 Hz | 124.5 mA @ 120 Hz | 133.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz | 4 A @ 100 kHz | 3.22 A @ 100 kHz | 2.49 A @ 100 kHz | 940 mA @ 100 kHz | 2.9 A @ 100 kHz | 2.67 A @ 100 kHz | 2.49 A @ 100 kHz | 2.67 A @ 100 kHz |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | 0.098" (2.50mm) | - |
| Size / Dimension | 0.248" Dia (6.30mm) | - | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | - | 0.276" (7.00mm) | 0.256" (6.50mm) | 0.236" (6.00mm) | 0.276" (7.00mm) | 0.315" (8.00mm) | 0.236" (6.00mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can | Radial, Can - SMD |
