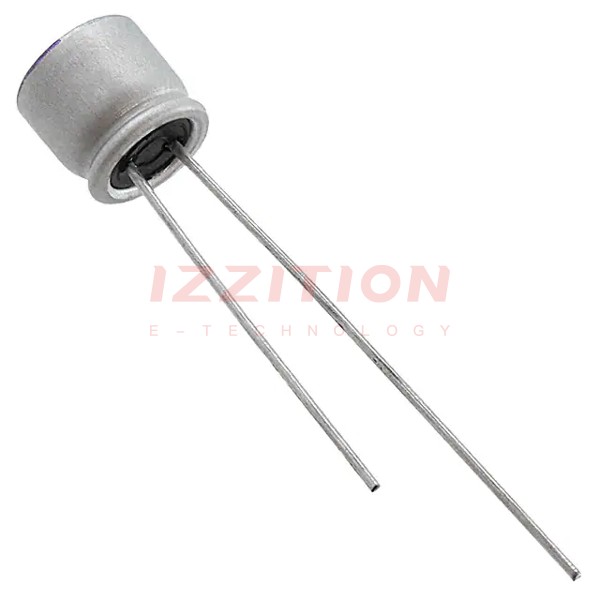

| Part Number | 16SEPF180M | 16SVPF180M | 16SEF180M | 16SEP180M | 16SEPC180M | 16SEPF150M |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 180 µF | 180 µF | 180 µF | 180 µF | 180 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 22mOhm | 22mOhm | 22mOhm | 20mOhm | 16mOhm | 30mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 1000 Hrs @ 125°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz | 165 mA @ 120 Hz | 52 mA @ 120 Hz | 182 mA @ 120 Hz | 218 mA @ 120 Hz | 129.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.3 A @ 100 kHz | 3.3 A @ 100 kHz | 1.04 A @ 100 kHz | 3.64 A @ 100 kHz | 4.36 A @ 100 kHz | 2.59 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | - | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.472" (12.00mm) | 0.354" (9.00mm) | 0.217" (5.50mm) |
| Surface Mount Land Size | - | 0.260" L x 0.260" W (6.60mm x 6.60mm) | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can - SMD | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
