Please send RFQ , we will respond immediately.

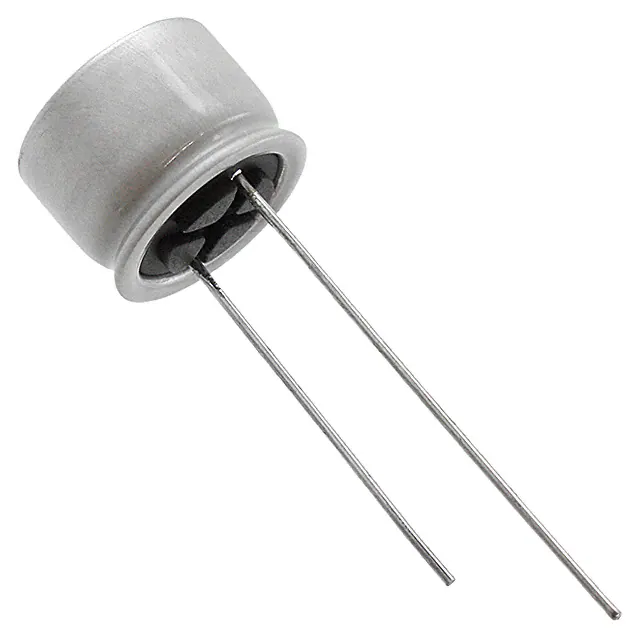

| Part Number | 16SEP150M | 16SEQP150M | 16SEPF150M | 16SEP180M | 16SEPG150M | 16SVP150M |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 150 µF | 150 µF | 150 µF | 180 µF | 150 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 30mOhm | 30mOhm | 30mOhm | 20mOhm | 12mOhm | 30mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 1000 Hrs @ 125°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - | - |
| Ripple Current @ Low Frequency | 151 mA @ 120 Hz | 47.75 mA @ 120 Hz | 129.5 mA @ 120 Hz | 182 mA @ 120 Hz | 225 mA @ 120 Hz | 151 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.02 A @ 100 kHz | 955 mA @ 100 kHz | 2.59 A @ 100 kHz | 3.64 A @ 100 kHz | 4.5 A @ 100 kHz | 3.02 A @ 100 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.138" (3.50mm) | 0.079" (2.00mm) | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.197" Dia (5.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.217" (5.50mm) | 0.472" (12.00mm) | 0.354" (9.00mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | - | - | - | - | - | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can - SMD |
