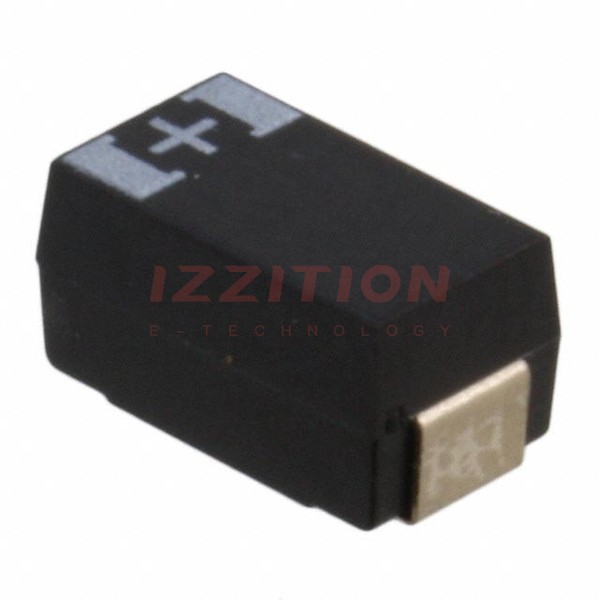

| Part Number | 10TPB220M | 10TPB220ML | 10THB220M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 10 V |
| Type | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 40mOhm @ 100kHz | 40mOhm @ 100kHz | 40mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | 1000 Hrs @ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.118" (3.00mm) | 0.154" (3.90mm) |
| Lead Spacing | - | - | - |
| Manufacturer Size Code | D4 | D3L | D4 |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
