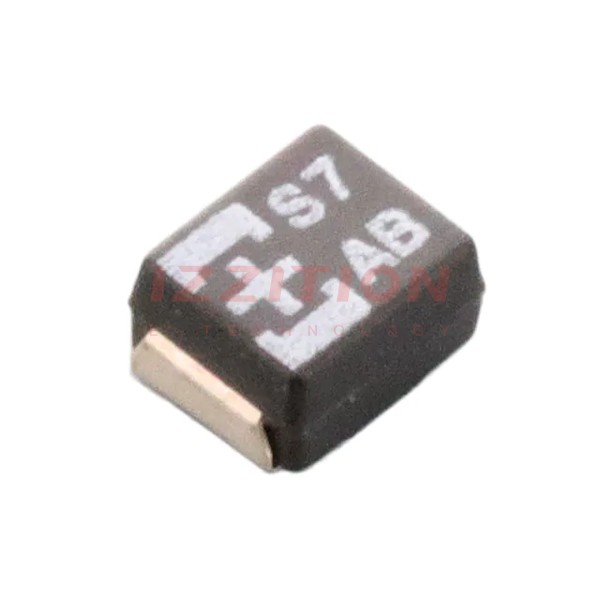

| Part Number | 10TAB47M | 10TPB47M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V |
| Type | Molded | Molded |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100kHz | 70mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Lead Spacing | - | - |
| Manufacturer Size Code | B2 | B2 |
| Ratings | - | - |
| Features | General Purpose | General Purpose |
