10SVP6R8M
  • Share:

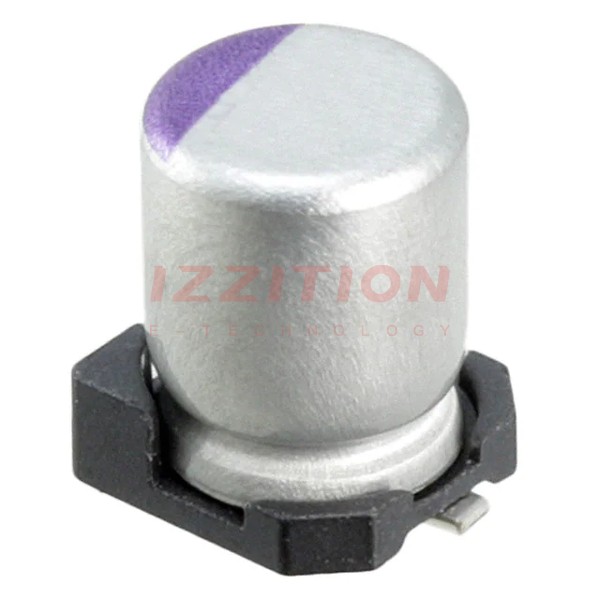

Panasonic Electronic Components 10SVP6R8M

Manufacturer No:
10SVP6R8M
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
10SVP6R8M Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 6.8UF 20% 10V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:6.8 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):240mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:33.5 mA @ 120 Hz
Ripple Current @ High Frequency:670 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.157" Dia (4.00mm)
Height - Seated (Max):0.217" (5.50mm)
Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$1.37
657

Please send RFQ , we will respond immediately.
