10SEP120M+TSS
  • Share:

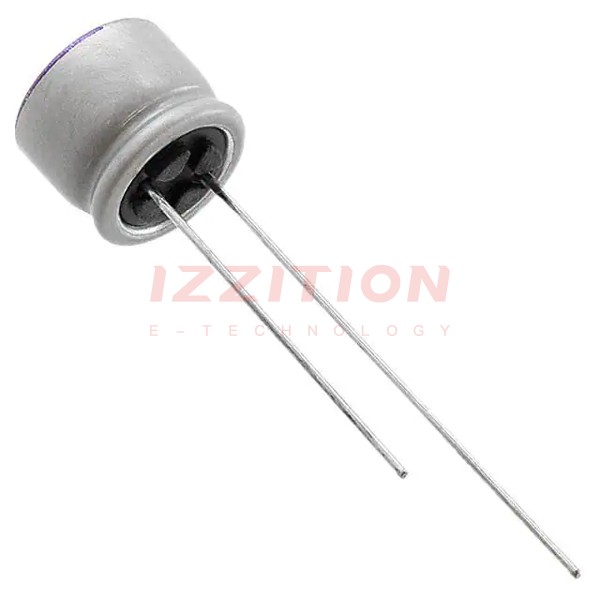

Panasonic Electronic Components 10SEP120M+TSS

Manufacturer No:
10SEP120M+TSS
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Box (TB)
Datasheet:
10SEP120M+TSS Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 120UF 20% 10V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:120 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):35mOhm
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:128 mA @ 120 Hz
Ripple Current @ High Frequency:2.56 A @ 100 kHz
Impedance:-
Lead Spacing:0.138" (3.50mm)
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.276" (7.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.58
1,140

Please send RFQ , we will respond immediately.
