Please send RFQ , we will respond immediately.

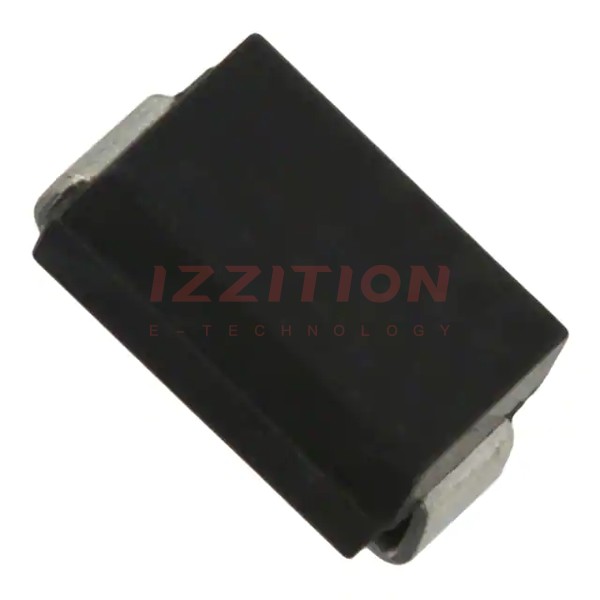

| Part Number | US2JA | US2KA | US2MA | US2A | US2AA | US2BA | US2DA | US2FA | US2GA | US2J |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Diotec Semiconductor | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi | Diotec Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 800 V | 1000 V | 50 V | 50 V | 100 V | 200 V | 300 V | 400 V | 600 V |
| Current - Average Rectified (Io) | 1.5A | 1.5A | 1.5A | 2A | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 1.5 A | 1.7 V @ 1.5 A | 1.7 V @ 1.5 A | 1 V @ 2 A | 1 V @ 1.5 A | 1 V @ 1.5 A | 1 V @ 1.5 A | 1 V @ 1.5 A | 1.3 V @ 1.5 A | 1.7 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns | 75 ns | 75 ns | 50 ns | 50 ns | 50 ns | 50 ns | 50 ns | 50 ns | 75 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 5 µA @ 800 V | 5 µA @ 1000 V | 5 µA @ 50 V | 5 µA @ 50 V | 5 µA @ 100 V | 5 µA @ 200 V | 5 µA @ 300 V | 5 µA @ 400 V | 5 µA @ 600 V |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | - | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AA, SMB | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AA, SMB |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AA (SMB) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -50°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -50°C ~ 150°C |
