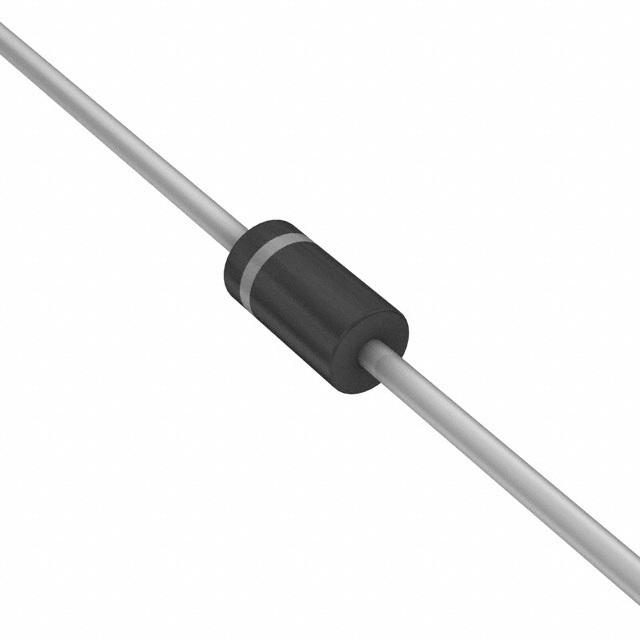

| Part Number | UF4002 | UF4006 | UF4004 | UF4003 | UF4005 | UF4002G | UF4002H | UF4001 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | NTE Electronics, Inc | SMC Diode Solutions | Taiwan Semiconductor Corporation | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 800 V | 400 V | 200 V | 600 V | 100 V | 100 V | 50 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A | 1A | 1A (DC) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A | 1.7 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1.7 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 75 ns | 50 ns | 50 ns | 75 ns | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V | 10 µA @ 800 V | 10 µA @ 400 V | 10 µA @ 200 V | 10 µA @ 600 V | 5 µA @ 100 V | 5 µA @ 100 V | 10 µA @ 50 V |
| Capacitance @ Vr, F | 17pF @ 4V, 1MHz | 17pF @ 4V, 1MHz | 17pF @ 4V, 1MHz | 17pF @ 4V, 1MHz | 17pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 17pF @ 4V, 1MHz | 17pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 | DO-41 | DO-41 | DO-41 | DO-41 | DO-204AL (DO-41) | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C |
