onsemi-UESD12ST5G - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	12V (Max)
Voltage - Breakdown (Min):	13.5V
Voltage - Clamping (Max) @ Ipp:	23.7V
Current - Peak Pulse (10/1000µs):	5.4A (8/20µs)
Power - Peak Pulse:	128W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	30pF @ 1MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOD-723
Supplier Device Package:	SOD-723

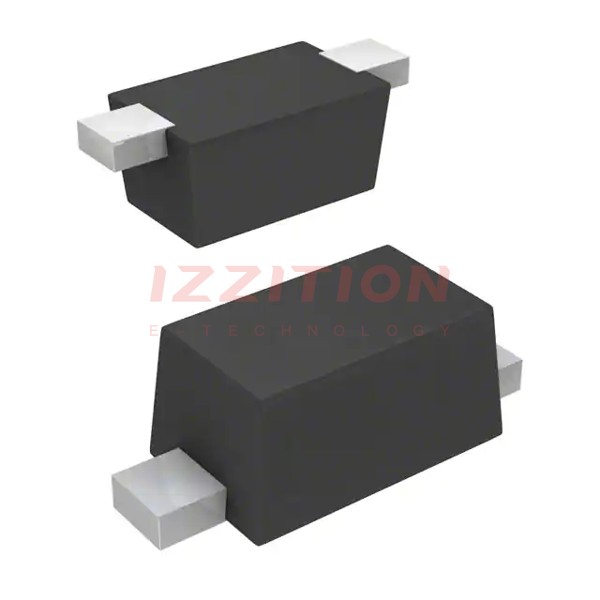

onsemi UESD12ST5G
