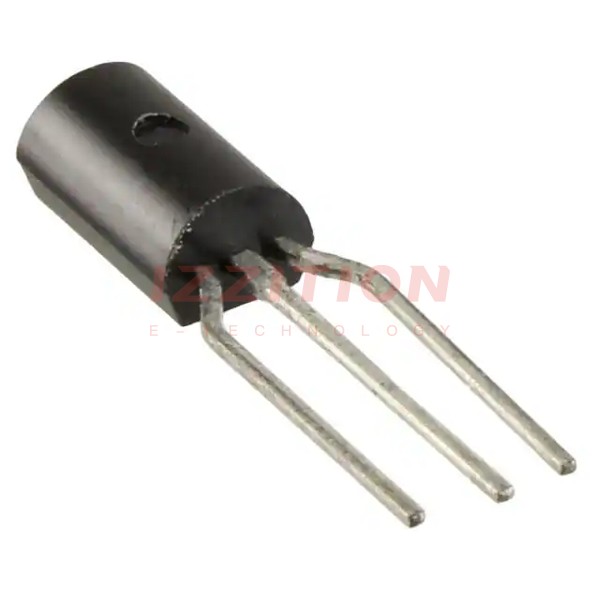

| Part Number | TN6725A | TN6726A | TN6729A | TN6727A | TN6728A | TN6705A | TN6715A |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | PNP | PNP | PNP | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 1.2 A | 1.5 A | 1 A | 1.5 A | 1.2 A | 1.5 A | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 30 V | 80 V | 40 V | 60 V | 45 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 2mA, 1A | 500mV @ 100mA, 1A | 500mV @ 10mA, 250mA | 500mV @ 100mA, 1A | 500mV @ 10mA, 250mA | 1V @ 100mA, 1A | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 4000 @ 1A, 5V | 60 @ 100mA, 1V | 50 @ 250mA, 1V | 50 @ 1A, 1V | 50 @ 250mA, 1V | 40 @ 250mA, 2V | 50 @ 1A, 1V |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-226-3 | TO-92-3 | TO-226-3 | TO-226-3 | TO-226-3 | TO-226-3 | TO-226-3 |
