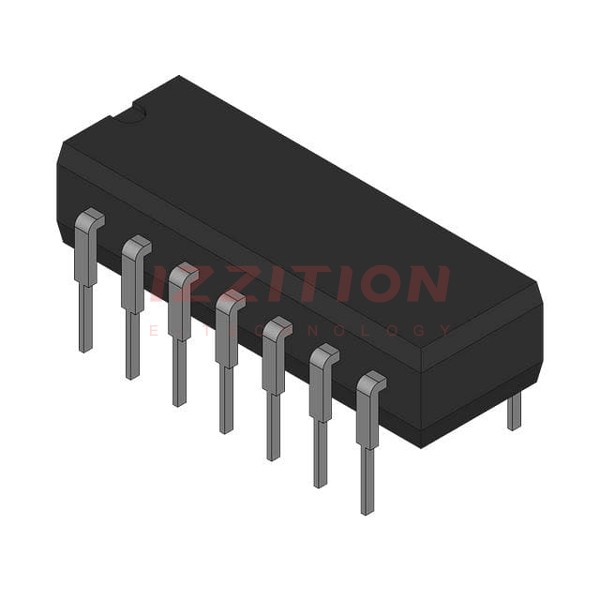

| Part Number | TL064ACN | TL064BCN | TL064CN | TL064ACP | TL054ACN | TL062ACN | TL064ACD |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Texas Instruments | onsemi | Texas Instruments | Texas Instruments | STMicroelectronics | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Active |
| Amplifier Type | J-FET | J-FET | J-FET | J-FET | J-FET | J-FET | J-FET |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 2 | 4 |
| Output Type | - | - | - | - | - | - | - |
| Slew Rate | 3.5V/µs | 3.5V/µs | 3.5V/µs | 3.5V/µs | 17.8V/µs | 3.5V/µs | 3.5V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 2.7 MHz | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - | - | - | - | - |
| Current - Input Bias | 30 pA | 30 pA | 30 pA | 30 pA | 30 pA | 30 nA | 30 pA |
| Voltage - Input Offset | 3 mV | 2 mV | 3 mV | 3 mV | 500 µV | 3 mV | 3 mV |
| Current - Supply | 200µA (x4 Channels) | 200µA (x4 Channels) | 200µA (x4 Channels) | 200µA (x4 Channels) | 8.4mA (x4 Channels) | 200µA (x2 Channels) | 200µA (x4 Channels) |
| Current - Output / Channel | 20 mA | - | 20 mA | - | 80 mA | 20 mA | - |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V | 10 V | 10 V | 6 V | 10 V |
| Voltage - Supply Span (Max) | 30 V | 30 V | 30 V | 30 V | 30 V | 36 V | 30 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C (TA) | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 8-Mini DIP | 14-SOIC |
