onsemi-TIP36CG - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	TIP36CG	TIP36CW	TIP36CP	TIP30CG	TIP31CG	TIP32CG	TIP33CG	TIP35CG	TIP36AG	TIP36C
Manufacturer	onsemi	STMicroelectronics	STMicroelectronics	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	STMicroelectronics
Product Status	Active	Active	Obsolete	Active	Active	Active	Active	Active	Active	Active
Transistor Type	PNP	PNP	PNP	PNP	NPN	PNP	NPN	NPN	PNP	PNP
Current - Collector (Ic) (Max)	25 A	25 A	25 A	1 A	3 A	3 A	10 A	25 A	25 A	25 A
Voltage - Collector Emitter Breakdown (Max)	100 V	100 V	100 V	100 V	100 V	100 V	100 V	100 V	60 V	100 V
Vce Saturation (Max) @ Ib, Ic	4V @ 5A, 25A	4V @ 5A, 25A	4V @ 5A, 25A	700mV @ 125mA, 1A	1.2V @ 375mA, 3A	1.2V @ 375mA, 3A	4V @ 2.5A, 10A	4V @ 5A, 25A	4V @ 5A, 25A	4V @ 5A, 25A
Current - Collector Cutoff (Max)	1mA	1mA	1mA	300µA	300µA	300µA	700µA	1mA	1mA	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	15 @ 15A, 4V	10 @ 15A, 4V	10 @ 15A, 4V	15 @ 1A, 4V	10 @ 3A, 4V	10 @ 3A, 4V	20 @ 3A, 4V	15 @ 15A, 4V	15 @ 15A, 4V	10 @ 15A, 4V
Power - Max	125 W	125 W	125 W	2 W	2 W	2 W	80 W	125 W	125 W	125 W
Frequency - Transition	3MHz	3MHz	3MHz	3MHz	3MHz	3MHz	3MHz	3MHz	3MHz	3MHz
Operating Temperature	-65°C ~ 150°C (TJ)	150°C (TJ)	150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-3	TO-247-3	TO-3P-3, SC-65-3	TO-220-3	TO-220-3	TO-220-3	TO-247-3	TO-247-3	TO-247-3	TO-247-3
Supplier Device Package	TO-247-3	TO-247-3	TO-3P	TO-220	TO-220	TO-220	TO-247-3	TO-247-3	TO-247-3	TO-247-3

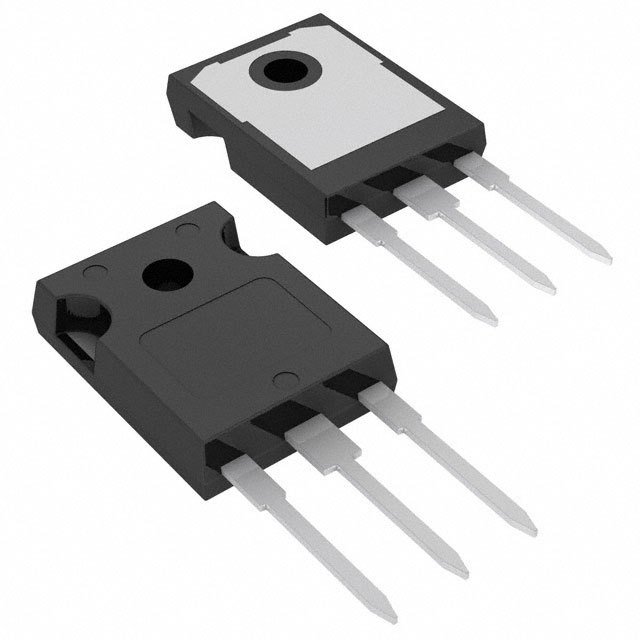

onsemi TIP36CG

Transistor Type:	PNP
Current - Collector (Ic) (Max):	25 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	4V @ 5A, 25A
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	15 @ 15A, 4V
Power - Max:	125 W
Frequency - Transition:	3MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3
