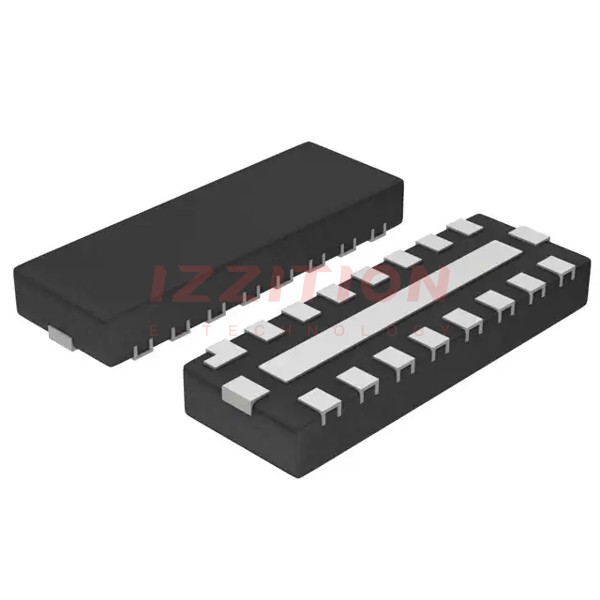

SZNUF8152MUT2G Image
×
Favorite
Compare
Add to RFQ
Share:
onsemi SZNUF8152MUT2G
Manufacturer No:
SZNUF8152MUT2G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
SZNUF8152MUT2G Datasheet
ECAD Model:
-
Description:
FILTER RC(PI) 125MHZ ESD SMD
Delivery:
Payment:
Product Attributes
Type:
Low Pass
Filter Order:
3rd
Technology:
RC (Pi)
Number of Channels:
8
Center / Cutoff Frequency:
125MHz (Cutoff)
Attenuation Value:
-25dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):
28
Current:
-
Values:
R = 28Ohms, C = 17pF, L = 1nH
ESD Protection:
Yes
Operating Temperature:
-40°C ~ 85°C
Applications:
Automotive
Voltage - Rated:
-
Mounting Type:
Surface Mount
Package / Case:
16-UFDFN Exposed Pad
Size / Dimension:
0.138" L x 0.047" W (3.50mm x 1.20mm)
Height:
0.022" (0.55mm)
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
76
