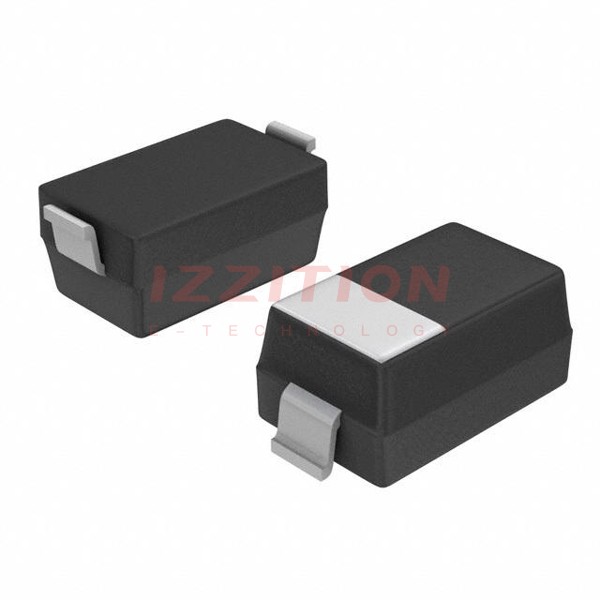

| Part Number | SZMMSZ5243BT1G | SZMMSZ5263BT1G | SZMMSZ5253BT1G | SZMMSZ5245BT1G | SZMMSZ5246BT1G | SZMMSZ5247BT1G | SZMMSZ5248BT1G | SZMMSZ5249BT1G | SZMMSZ5244BT1G | SZMMSZ5223BT1G | SZMMSZ5233BT1G | SZMMSZ5240BT1G | SZMMSZ5241BT1G | SZMMSZ5242BT1G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 13 V | 56 V | 25 V | 15 V | 16 V | 17 V | 18 V | 19 V | 14 V | 2.7 V | 6 V | 10 V | 11 V | 12 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 13 Ohms | 150 Ohms | 35 Ohms | 16 Ohms | 17 Ohms | 19 Ohms | 21 Ohms | 23 Ohms | 15 Ohms | 30 Ohms | 7 Ohms | 17 Ohms | 22 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 500 nA @ 9.9 V | 100 nA @ 43 V | 100 nA @ 19 V | 100 nA @ 11 V | 100 nA @ 12 V | 100 nA @ 13 V | 100 nA @ 14 V | 100 nA @ 14 V | 100 nA @ 10 V | 75 µA @ 1 V | 5 µA @ 3.5 V | 3 µA @ 3 V | 2 µA @ 8.4 V | 1 µA @ 9.1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 |
| Supplier Device Package | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 |
