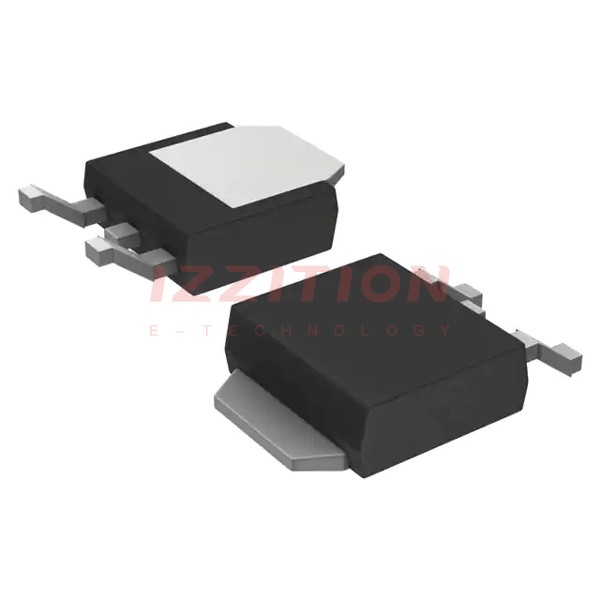

| Part Number | SVD5867NLT4G | SVD5865NLT4G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Not For New Designs | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | 10A (Ta), 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 39mOhm @ 11A, 10V | 16mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V | 29 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 675 pF @ 25 V | 1400 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.3W (Ta), 43W (Tc) | 3.1W (Ta), 71W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DPAK-3 | DPAK-3 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
