onsemi-SURA8130T3G-VF01 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	2A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	65 ns
Current - Reverse Leakage @ Vr:	5 µA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount

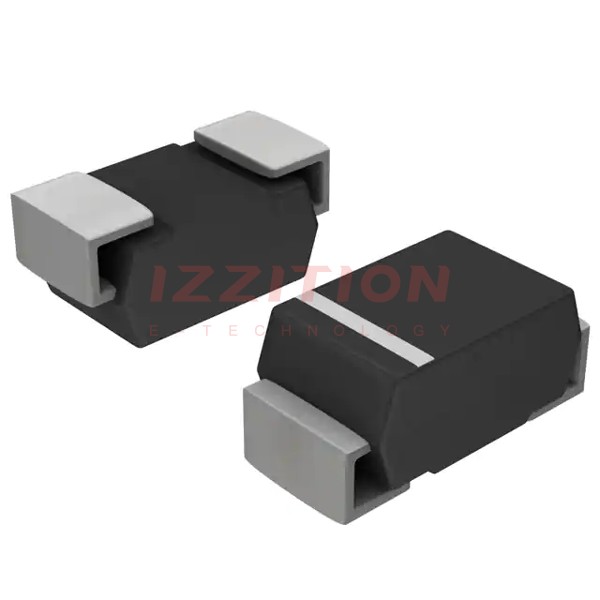

Package / Case:	DO-214AC, SMA
Supplier Device Package:	SMA
Operating Temperature - Junction:	-65°C ~ 175°C

onsemi SURA8130T3G-VF01
