Please send RFQ , we will respond immediately.

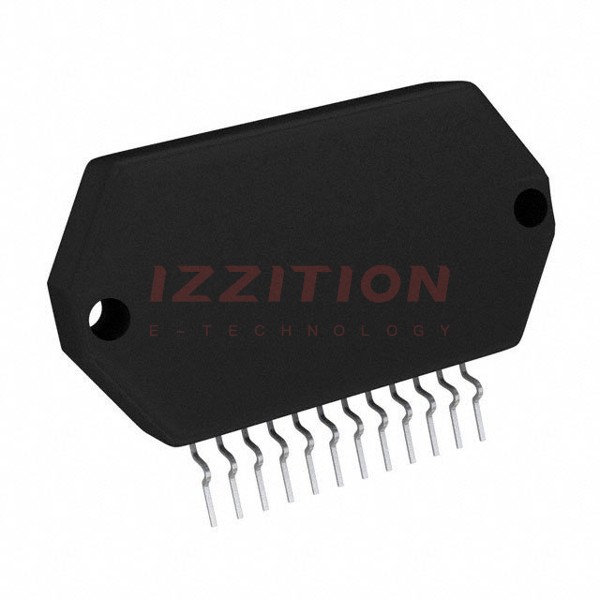

| Part Number | STK672-540 | STK672-541 | STK672-520 | STK672-530 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Sanyo |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Unipolar | - | Unipolar | Unipolar |
| Motor Type - AC, DC | - | - | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | - | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | - | Half Bridge (2) | Half Bridge (2) |
| Interface | Parallel | - | Parallel | Parallel |
| Technology | Power MOSFET | - | Power MOSFET | Power MOSFET |
| Step Resolution | 1, 1/2 | - | 1, 1/2 | 1, 1/2 |
| Applications | General Purpose | - | General Purpose | General Purpose |
| Current - Output | 3.3A | - | 1.1A | 2.2A |
| Voltage - Supply | 4.75V ~ 5.25V | - | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 42V | - | 10V ~ 42V | 10V ~ 42V |
| Operating Temperature | 0°C ~ 105°C (TC) | - | 0°C ~ 105°C (TC) | 0°C ~ 105°C (TC) |
| Mounting Type | Surface Mount | - | Through Hole | Through Hole |
| Package / Case | 12-SIP Formed Leads | - | 12-SIP, Formed Leads | 12-SIP |
| Supplier Device Package | 12-SIP | - | 12-SIP | 12-SIP |
