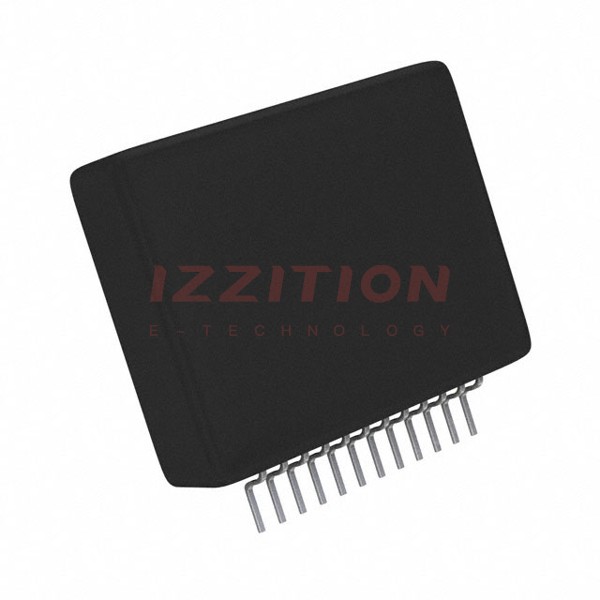

| Part Number | STK672-110-E | STK672-120-E | STK672-210-E | STK672-110H-E |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Unipolar | Unipolar | Unipolar | - |
| Motor Type - AC, DC | - | - | - | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | - |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) | - |
| Interface | Parallel | Parallel | Parallel | - |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | - |
| Step Resolution | 1, 1/2 | 1, 1/2 | 1, 1/2 | - |
| Applications | General Purpose | General Purpose | General Purpose | - |
| Current - Output | 2.1A | 3A | 1.6A | - |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| Voltage - Load | 10V ~ 42V | 10V ~ 42V | 10V ~ 45V | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | - |
| Mounting Type | Through Hole | - | - | - |
| Package / Case | 12-SIP | - | - | - |
| Supplier Device Package | 12-SIP | - | - | - |
