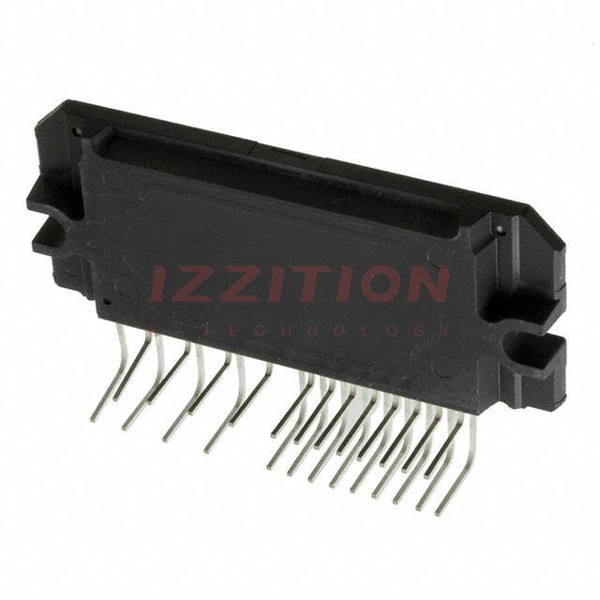

| Part Number | STK57FU394AG-E | STK57FU394A-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Applications | AC Motors, DC Motors, General Purpose | AC Motors |
| Interface | Logic | - |
| Load Type | Inductive | Inductive |
| Technology | IGBT | Bipolar |
| Rds On (Typ) | - | - |
| Current - Output / Channel | 15A | 15A |
| Current - Peak Output | 30A | 30A |
| Voltage - Supply | 12.5V ~ 17.5V | 12.5V ~ 17V |
| Voltage - Load | 400V (Max) | 400V (Max) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Features | Bootstrap Circuit | - |
| Fault Protection | Current Limiting, UVLO | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 35-SSIP, 25 Leads | 35-SSIP, 25 Leads, Formed Leads |
| Supplier Device Package | 35-SIP/SIP2A-3 | 35-SIP |
