Please send RFQ , we will respond immediately.

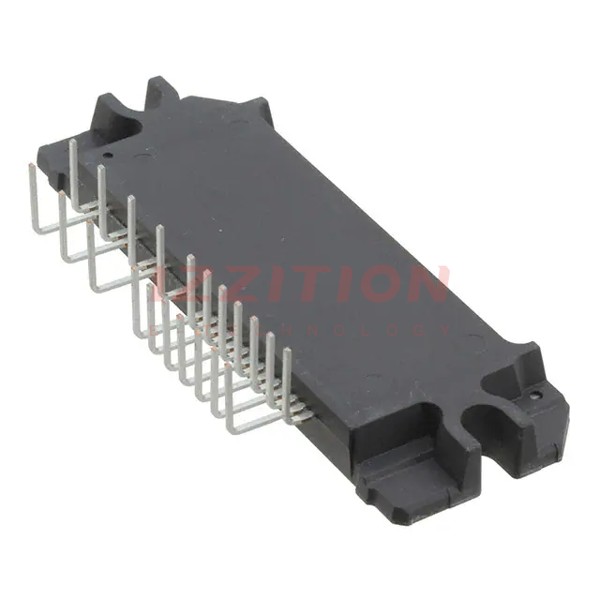

| Part Number | STK551U392A-E | STK551U3A2A-E | STK554U392A-E | STK551U362A-E |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Applications | AC Motors | AC Motors | AC Motors | AC Motors |
| Interface | Logic | Logic | Logic | Logic |
| Load Type | Inductive | Inductive | Inductive | Inductive |
| Technology | IGBT | IGBT | IGBT | IGBT |
| Rds On (Typ) | - | - | - | - |
| Current - Output / Channel | 15A | 20A | 15A | 10A |
| Current - Peak Output | 30A | 40A | 30A | 20A |
| Voltage - Supply | 12.5V ~ 17.5V | 12.5V ~ 17.5V | 12.5V ~ 17.5V | 12.5V ~ 17.5V |
| Voltage - Load | 450V (Max) | 450V (Max) | 450V (Max) | 450V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Latch Function, Status Flag | Bootstrap Circuit, Latch Function, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Shoot-Through, UVLO | Current Limiting, Shoot-Through, UVLO | Current Limiting, Shoot-Through, UVLO | Current Limiting, Shoot-Through, UVLO |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 29-SSIP Module, 21 Leads, Formed Leads | 29-SSIP Module, 21 Leads, Formed Leads | 29-SSIP Module, 21 Leads, Formed Leads | 29-SSIP Module, 21 Leads, Formed Leads |
| Supplier Device Package | 29-SIP | 29-SIP | 29-SIP | 29-SIP |
