STK544UC62K-E

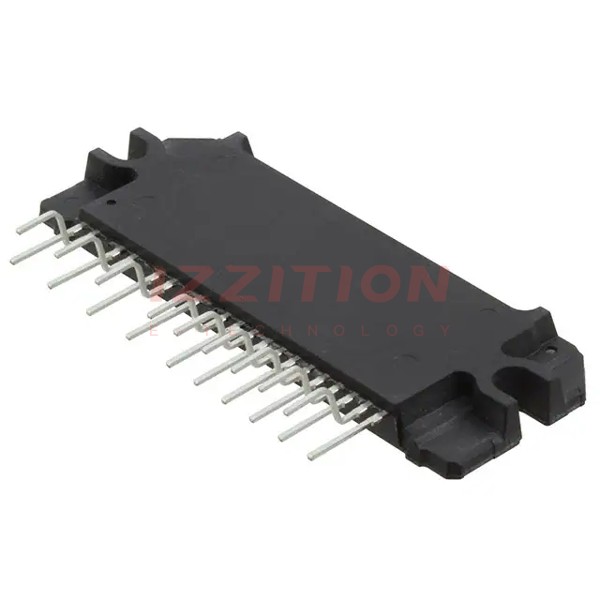

STK544UC62K-E Image
×
Favorite
Compare
Add to RFQ
Share:
onsemi STK544UC62K-E
Manufacturer No:
STK544UC62K-E
Manufacturer:
onsemi
Package:
Tube
Datasheet:
STK544UC62K-E Datasheet
ECAD Model:
-
Description:
IC BRIDGE DRIVER PAR 23SIP
Delivery:
Payment:
Product Attributes
Output Configuration:
Half Bridge (3)
Applications:
AC Motors
Interface:
Logic
Load Type:
Inductive
Technology:
IGBT
Rds On (Typ):
-
Current - Output / Channel:
10A
Current - Peak Output:
20A
Voltage - Supply:
12.5V ~ 17.5V
Voltage - Load:
450V (Max)
Operating Temperature:
-40°C ~ 150°C (TJ)
Features:
Bootstrap Circuit
Fault Protection:
Shoot-Through, UVLO
Mounting Type:
Through Hole
Package / Case:
23-SIP, 19 Leads, Formed Leads
Supplier Device Package:
23-SIP-1
0
Remaining
View Similar
In Stock
UnitPrice:
$20.30
Quantity:
6
