Please send RFQ , we will respond immediately.

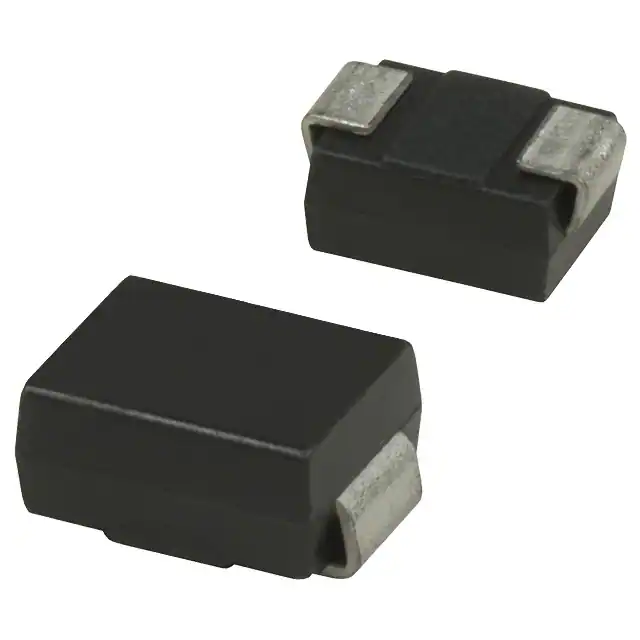

| Part Number | SS29 | SS29H | SS26 | SS28 |
|---|---|---|---|---|
| Manufacturer | onsemi | Taiwan Semiconductor Corporation | MDD | onsemi |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 90 V | 90 V | 60 V | 80 V |
| Current - Average Rectified (Io) | 2A | 2A (DC) | 2A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 2 A | 850 mV @ 2 A | - | 850 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 400 µA @ 90 V | 100 µA @ 90 V | 500 µA @ 60 V | 400 µA @ 80 V |
| Capacitance @ Vr, F | - | - | 80pF @ 4V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) | DO-214AA (SMB) | SMA | DO-214AA (SMB) |
| Operating Temperature - Junction | -65°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 125°C |
